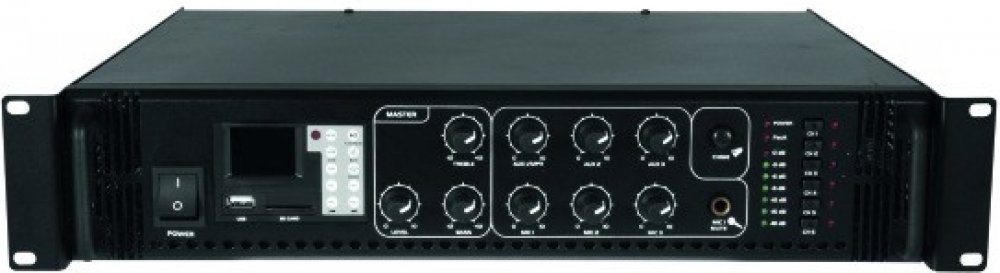

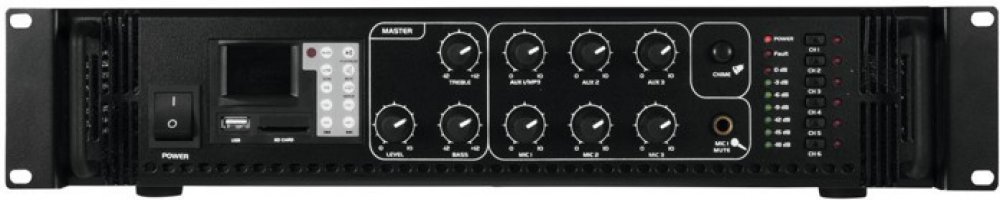

Omnitronic MPZ-120.6P

Omnitronic PA 4 120 W 0.01 kg

Comfortable control of PA speakers via 6-zone technology. 6 PA zone outputs, independently switchable on the front panel. Master PA output (70 V and 100 V). Output for low-impedance speakers (4-16 ohms). MP3 player with IR remote control and LCD with blue backlight. SD card slot and USB input . Folder navigation and repeat functions (1, All). 2 rear microphone inputs (6.3 mm jack, unbal.). 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit . All microphone inputs with separate level controls . 3 line inputs (stereo RCA) with separate level controls . 1 line output (stereo RCA) . Chime, switchable. Treble and bass control for the output signal. 7-fold LED level display. Master control for the output signal . Fan-cooled. Protection circuits with LED indication: over current, short circuit, turn-on delay
&#160
Power supply: 230 V AC, 50 Hz ~
Power consumption: 240 W
Output power: 120 W RMS
Output type: 70 V, 100 V or 4-16 ohms
Output current: 2.5 A (70 V), 1.8 A (100 V)
Mic inputs: 5 mV, 600 ohms
Line inputs: 300 mV, 10 kohms
Speaker connectors: Screw connectors, terminal block
Frequency range: 80 Hz - 16 kHz
Distortion: 0.5 % (1 kHz)
S/N ratio: 85 dB (line), 75 dB (mic)
Playback format audio player: MP3
Available storage media: USB devices and SD(HC) cards up to 32 GB
File system: FAT32
Number of files: max. 999
Dimensions: 483 x 385 x 92 mm
Weight: 12 kg
