300 W
5 dB
Hertz
165 mm
komponentní
63 mm

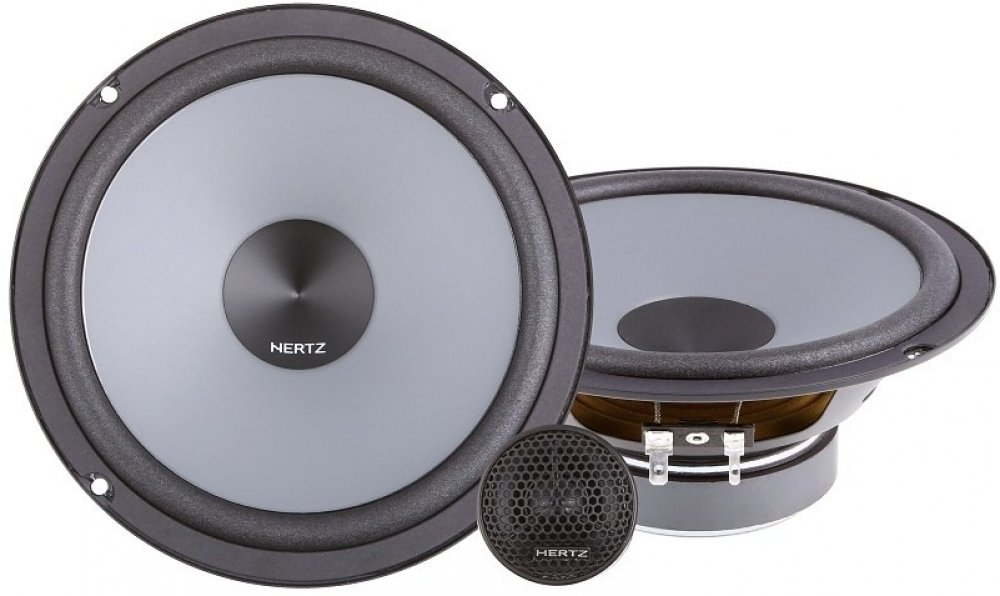

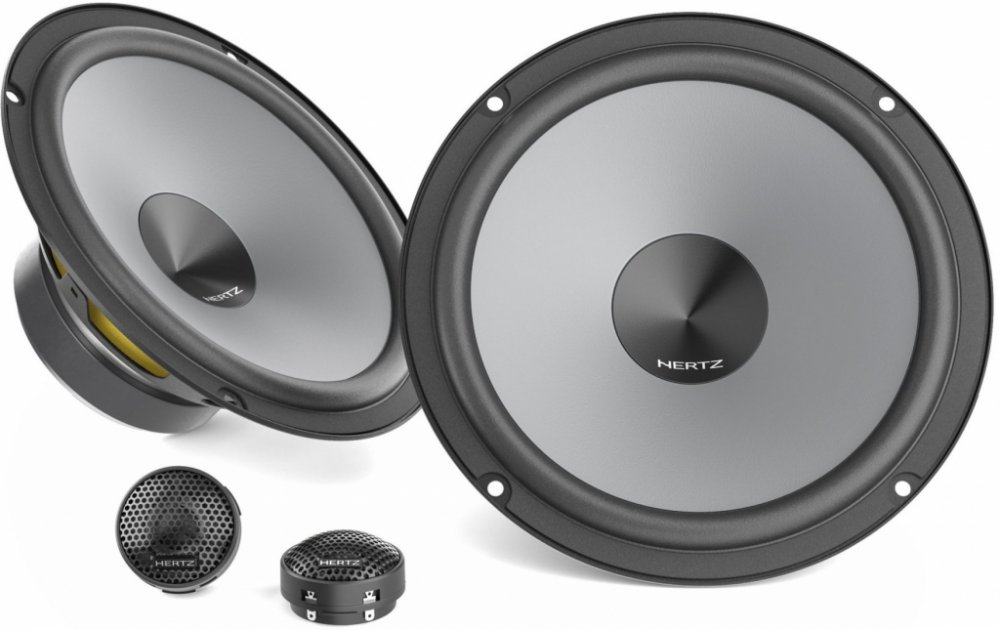

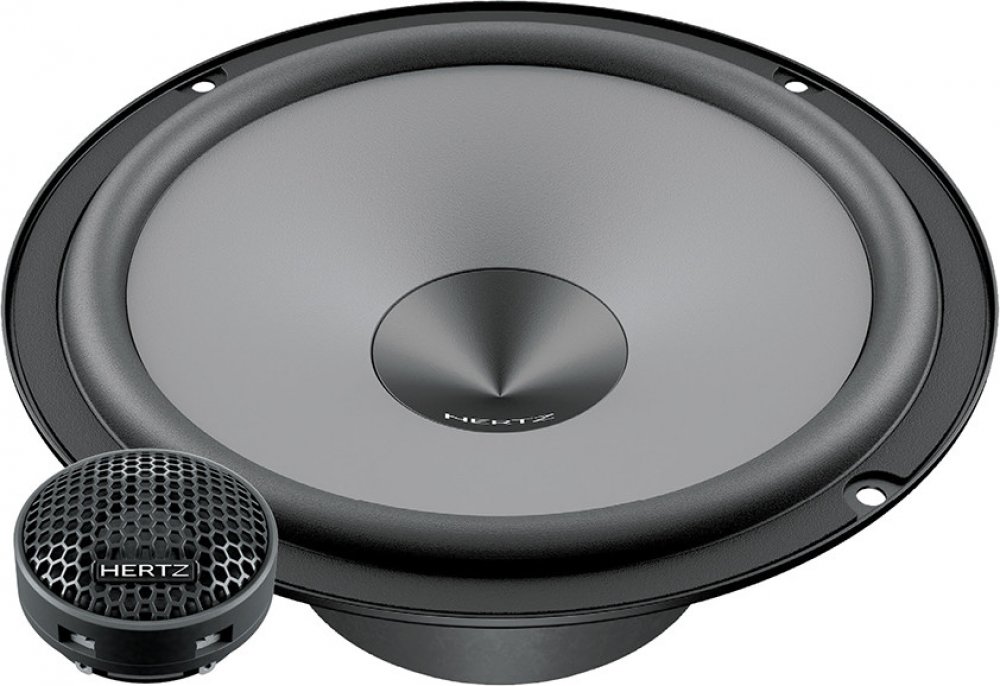

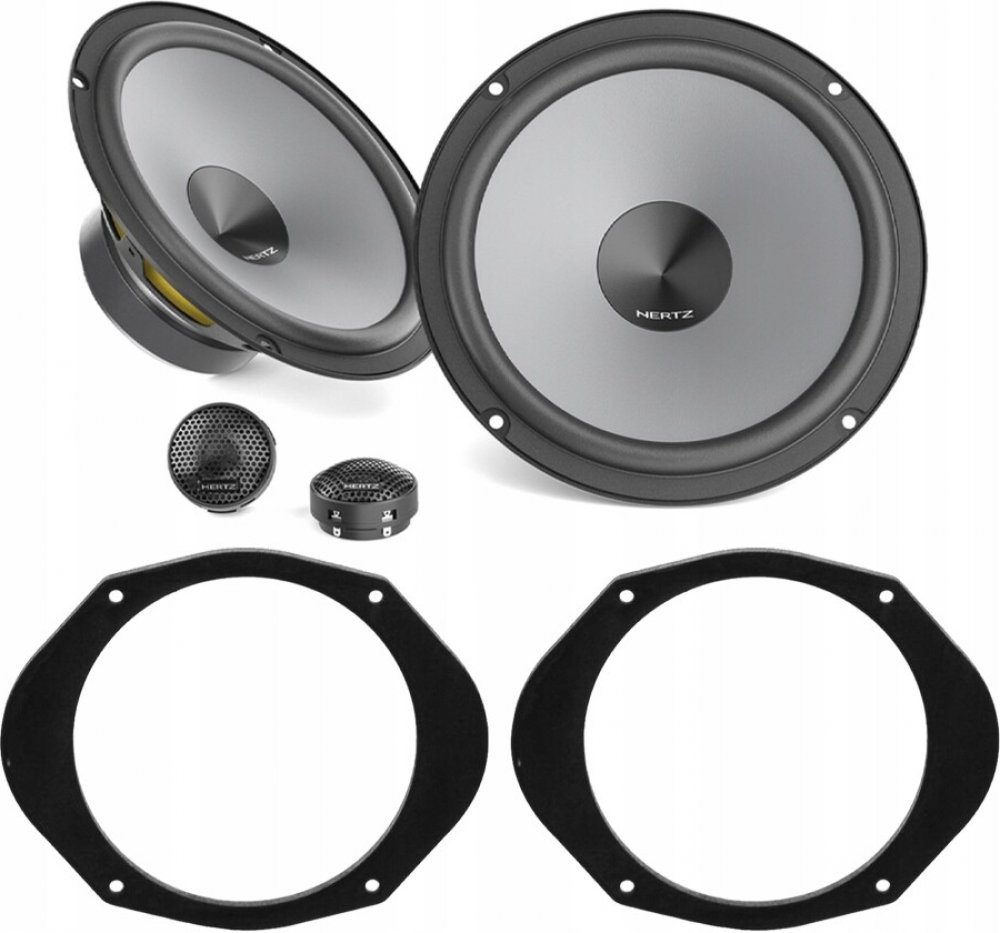

The K 165 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driv...
The K 165 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.
Owner's Manual
Technical Datasheet
Data table
Power Handling - Peak W
300
Power Handling - Continuous W
75
Impedance Ω
4
Frequency response Hz
55 ÷ 23k
Sensitivity dB SPL
93,5
Voice coil Ø mm (in.)
25 (1)
Woofer size mm (in.)
165 (6.5)
Tweeter size mm (in.)
24 (0.9)
Woofer magnet
High density flux ferrite
Tweeter magnet
Neodymium
Woofer cone
Water-repellent pressed paper
Tweeter dome
PEI
Crossover type
6 dB/Oct tweeter integrated
Crossover cut off
-
Features
T 24 – Tweeter:
1. 24mm diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size.
2. Annular acoustic lens optimized for exceptional off-axis performance.
3. 6dB/Oct crossover integrated on tweeter wiring.
4. Mounting accessories for external or embedded mounting included.
V 165 – Woofer:
1. V-cone® design for best off-axis response, clear mid-high frequency detail and powerful bass.
2. Foam surround combining high sensitivity and deep bass response.
3. Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
4. High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
5. Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
Technologies
V-CONE®
The exponential profile gets very close to the perfect one, providing exceptional dispersion.
