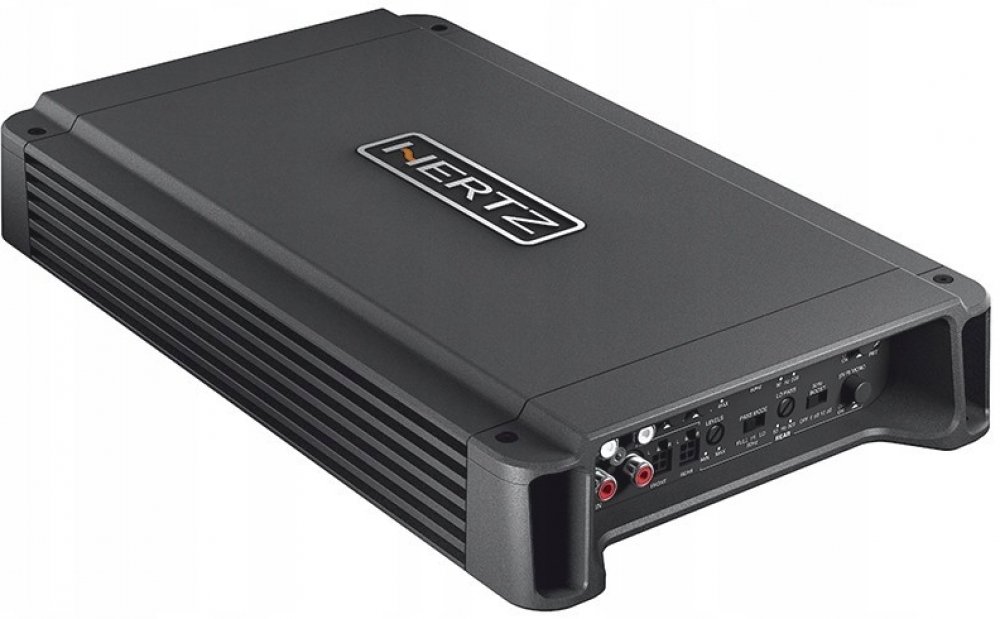

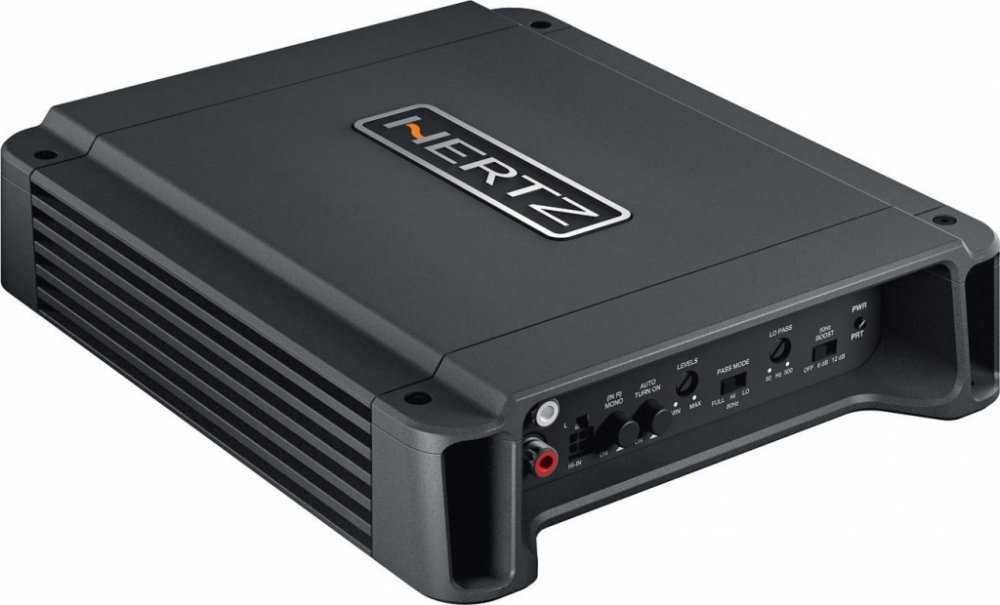

Hertz HCP 2

Power Supply

Power supply voltage/fuse
11 ÷ 15 VDC / 1x 20A
Idling current (power ON/OFF)
0.4A / 0.04A
Consumption @ 2?, 14.4 VDC (Max Musical Power)
12 A
Remote In
7 ÷ 15 VDC - 1mA
ART™
Automatic Remote Turn-On/Off with Speaker-In


Amplifier stage

Distortion - THD (100Hz @ 4?)
0.01%
Bandwidth
10 ÷ 65 kHz
S/N Ratio (A weighted @ 1 V)
103 dB
Damping factor (100 Hz@ 4?)
200
Pre-In sensitivity
0.6 ÷ 5 VRMS (15k?)
Speaker-In sensitivity
1.5 ÷ 12 VRMS (47k?)
Load impedance (Min)2 Ch 1 Ch
4 ? 2 ?


CEA 2006-A RATINGS
RMS Power (4 Ohms, ?1% THD+N, 14.4 Volts): 50W x 2 Ch
S/N Ratio (ref. 1W output): 82dBA


OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
2 Ch
55W x 2 (4?)
2 Ch
85W x 2 (2?)
1 Ch
170W x 1 (4?)
OUTPUT POWER (RMS) @ 14.4 VDC, THD 10%:
2 Ch
65W x 2 (4?)
2 Ch
100W x 2 (2?)
1 Ch
200W x 1 (4?)


Input/Outputs

Input
PRE IN / Speaker IN
Pre out FULL range (FRONT)
Yes
Filters Full:     Hi-Pass:     Lo-Pass:
Yes80 Hz @ 12 dB/Oct50 ÷ 500 Hz @ 12 dB/Oct.
Mono (on/off)
Yes
BOOST 50Hz (select)
(0 / 6 / 12) dB
Dimensions

Max size (mm)
215 x 190 x 50
Weight (kg)
1.80
