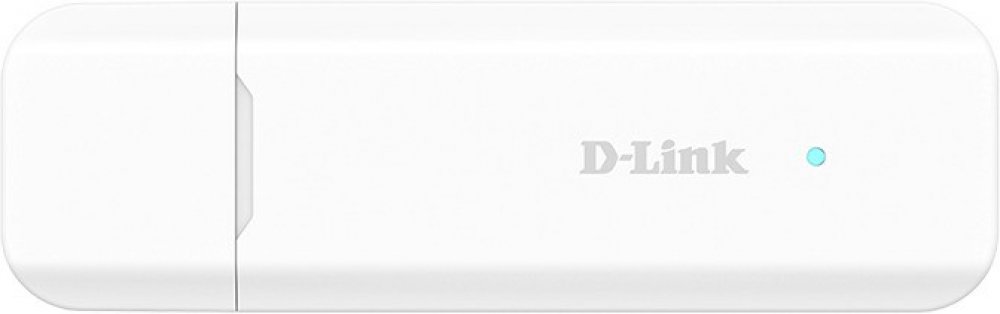

D-Link DWM-222

4G LTE USB Adapter: DWM-222
PŘEHLED
LTE pásma 800, 900, 1800, 2100, 2600 MHz
B1 (Band 1) = 2100 MHz
B3 = 1800 MHz
B7 = 2600 MHz
B8 = 900 MHz
B20 = 800 MHz

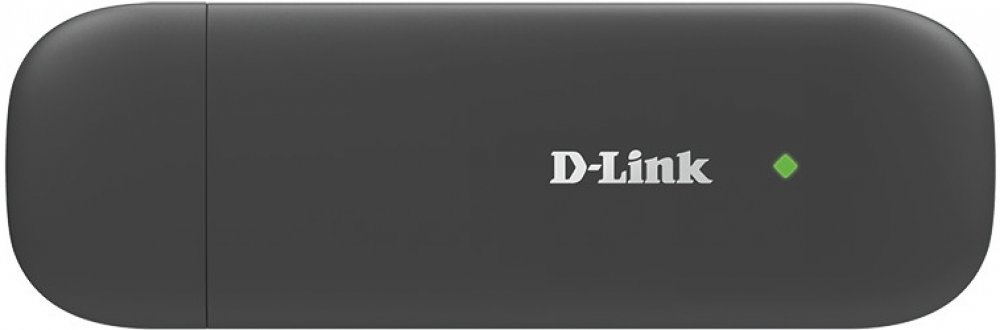

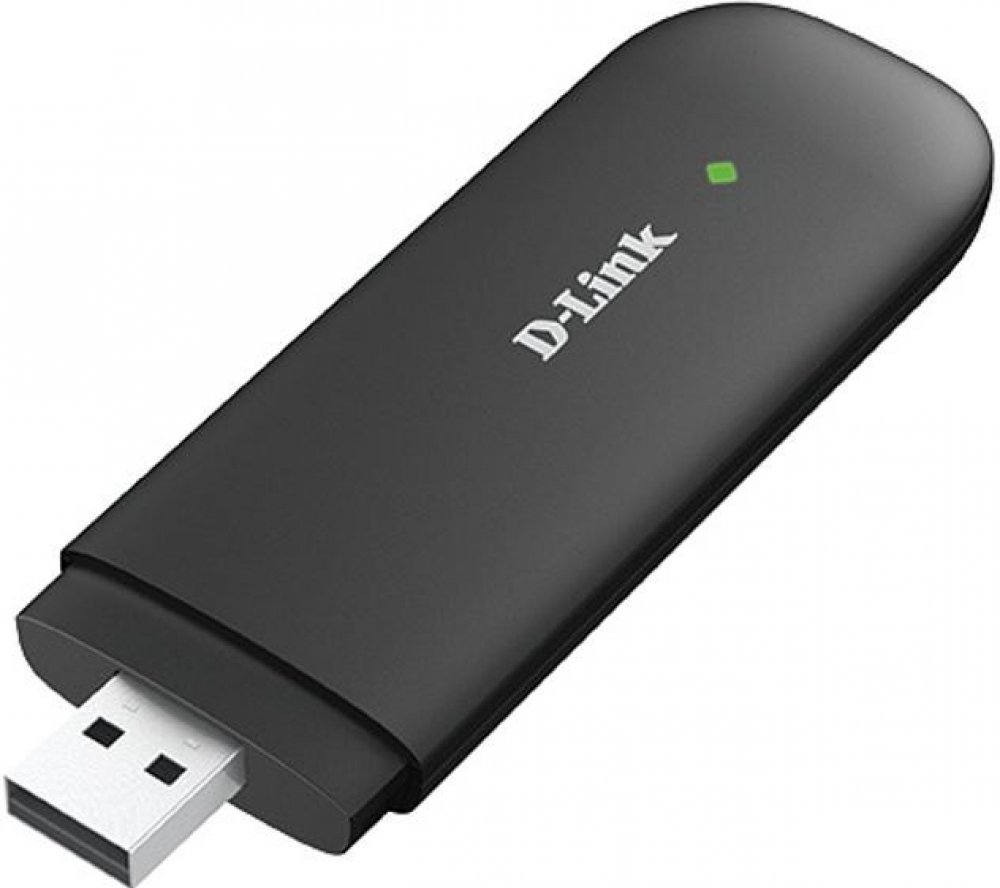

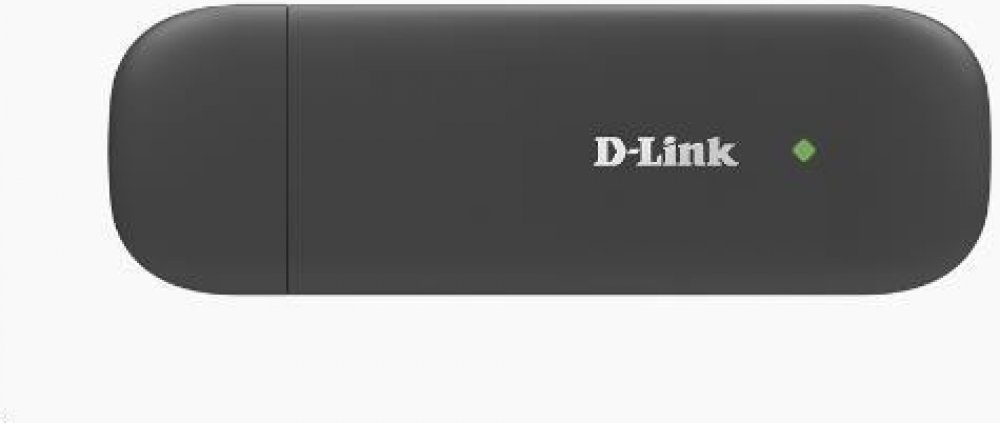

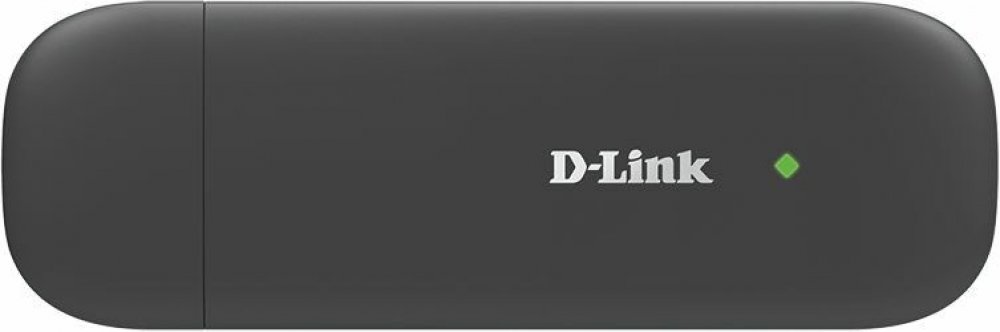

The DWM-222 4G LTE USB Adapter is a portable travel modem that allows you to connect to the Internet wherever you are1. With fast downlink and uplink data rates, as well as low latency, it provides you with a high-performance and responsive connection when you’re on the road.
This little adapter gives you high-speed access to the Internet wherever you are. Using super-fast 4G LTE technology, you can achieve downlink speeds of up to 150 Mbps and uplink speeds of up to 50 Mbps1 so you don’t have to slow down when you’re on the move.
Simply plug the 4G LTE USB Adapter into your computer and get Internet access anywhere you can receive an LTE signal (also backwards compatible with HSPA, GSM, GPRS, or EDGE data signal). The DWM-222 also has an integrated antenna for a connection that is consistent and reliable whether you’re in a coffee shop, attending a business meeting or working from a hotel.
The DWM-222 is plug and play2 with drivers built right into the modem, making installation both fast and simple. It can be used on notebooks and netbooks without a CD-ROM drive; simply plug it into a USB port and the drivers install automatically, getting you up and running in no time. Additional Connection Manager software is also built-in, so you can send and receive SMS messages without downloading additional software.

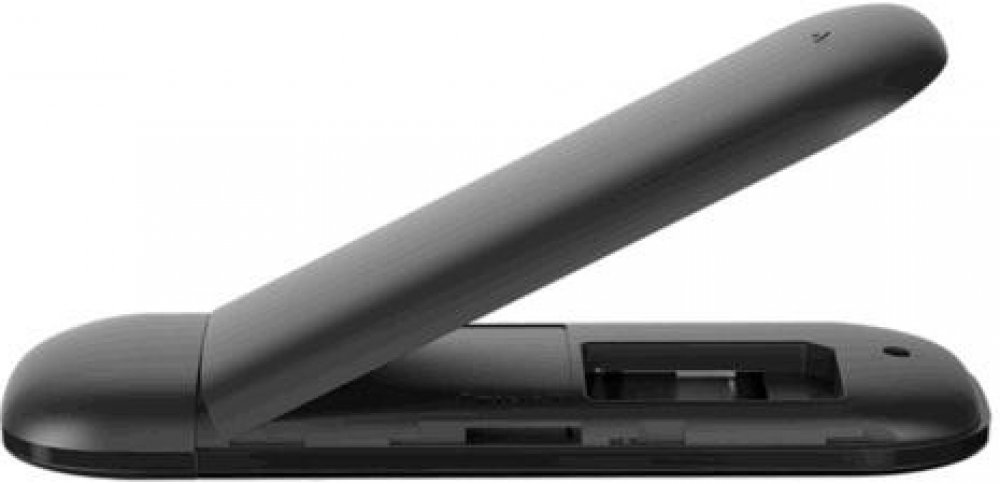

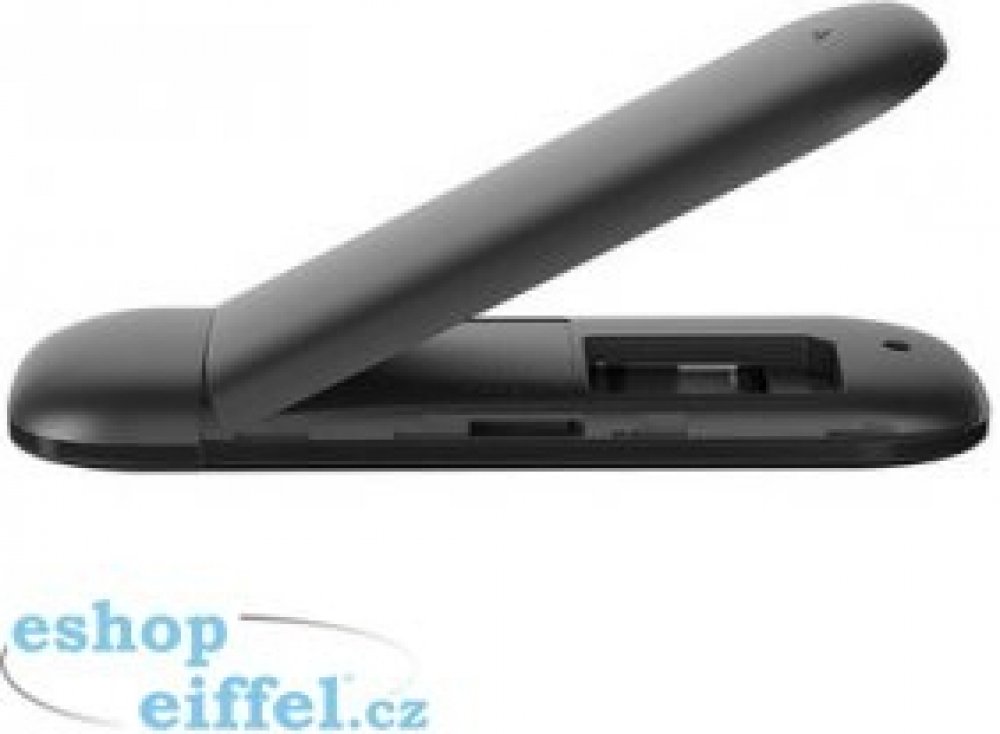

The DWM-222 4G LTE USB Adapter is small and slim enough to carry around in your purse or pocket. It features a microSD card reader for optional removable storage (up to 32 GB), allowing you to always have your files and contacts on hand. With no batteries, cables, or additional hardware required, you can truly take it with you wherever you go.
TECHNICKÁ SPECIFIKACE
General
Device Interfaces
*USB 2.0
*SIM slot (6-pin)
*microSD card slot (microSD card not included, supports up to 32 GB)
Broadband Wireless Support
*LTE/DC-HSPA+/HSPA/WCDMA
*GSM/GPRS/EDGE
Radio Frequency Bands
*LTE @ 2600/2100/1800/900/800 Mhz
*UMTS @ 2100/900 Mh
*Quadband GSM/GPRS/EDGE
Data Rate1
*LTE: 3GPP Rel-9 FDD-LTE Cat.4
*Downlink: Up to 150 Mbps
*Uplink: Up to 50 Mbps
*DC-HSPA+
*Downlink: Up to 42 Mbps
*Uplink: Up to 5.76 Mbps
Bandwidth
*1.4, 3, 5, 10, 15, 20 MHz*
Minimum System Requirements
*Windows XP/Vista/7/8, Mac OS X 10.5 or higher
*128 MB RAM or greater
*50 MB available disk space
Functionality
LTE Output Power
*Class 3 (23 dBm)
Antenna
*Integrated antenna*
Status LED
*Green (blinking): Connected to LTE network
*Blue (blinking): Connected to 3G network
*Purple (blinking): Connected to 2G network
*Red (blinking): No service/device error
Plug and Play
*Built-in drivers and software; no CD-ROM required*
Software Features
*Connection Manager
*Phonebook
*SMS messaging
*APN Manager
Physical
Dimensions
*103 x 34 x 11.5 mm
Weight
*33 grams
Certifications
*RoHS
*CE
*WHQL
