Aten CS1716A

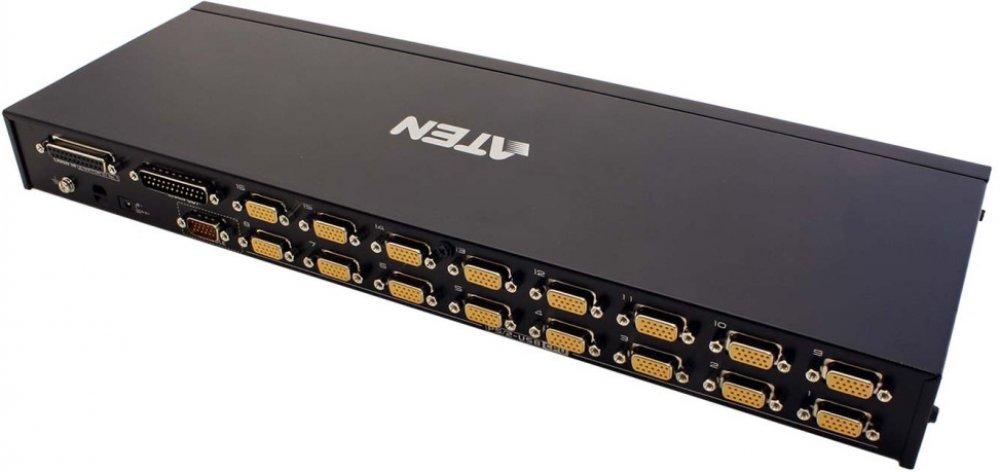

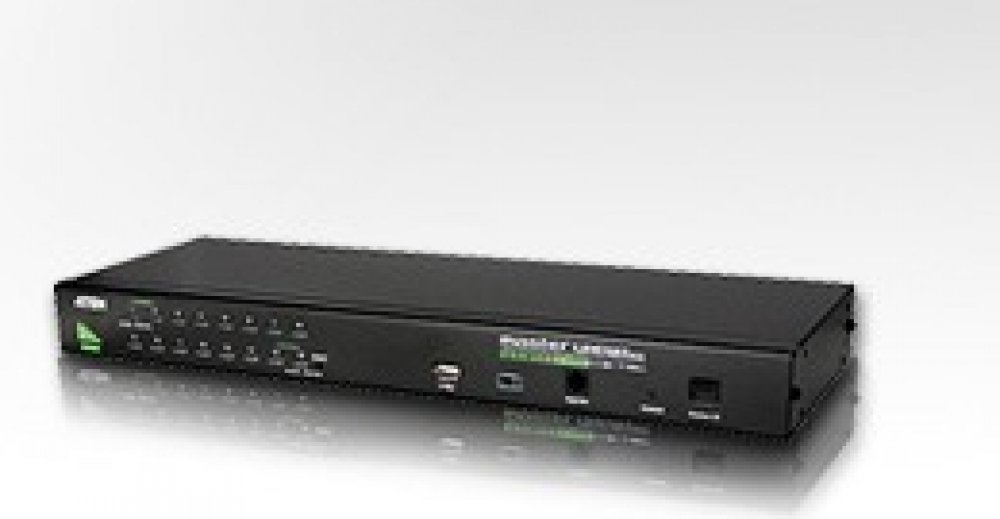

ATEN KVM switch CS-1716A USB&PS/2 16PC OSD 19" (CS-1716A) The CS1716A KVM switch is a control unit that allows access to multiple
computers from a single PS/2 or USB console (keyboard, mouse, and monitor).
A single CS1716A can control up to 16 computers. As many as 31 additional
switches can be daisy-chained to each other, so that up to 512 computers can
all be controlled from a single keyboard-monitor-mouse console. Additionally, a
front panel USB port is available for each computer to access any peripherals
connected to it on a one-at-a-time basis.
Features
One USB-PS/2 console controls up to 16 computers
Daisy-chain up to 31 additional units – control up to 512 computers from a
single console
Front accessible USB port allows each computer to access USB peripherals*
Dual Interface – supports computers and console with PS/2 or USB keyboards
and mice
Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
Video DynaSync – stores the console monitor's EDID (Extended Display
Identification Data) to optimize display resolution
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB / PS/2 keyboard and mouse emulation – computers boot even when the
console focus is elsewhere
Superior video quality – up to 2048 × 1536; DDC2B
No software required – convenient computer selection via front panel
pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for
manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security; only authorized users view and control computers;
up to four users and an administrator with separate profiles for each
Auto Scan feature for monitoring user-selected computers
Broadcast Mode – operation simultaneously performed on all selected
computers… etc
Hot pluggable – add or remove computers without having to power down the
switch
Buzzer on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switch at the same time via the
daisy-chain cable
Rack mountable in 19" system rack (1U)
The USB peripheral function only works with USB cable set connections. It
will not work with PS/2 cable set connections.
Package Content
1× KVM Switch with Standard Rack Mounting Kit
2× Custom KVM Cable Sets
1× Console Cable
1× Firmware Upgrade Cable
1× Grounding Wire
1× Foot Pad Set(4 PCS)
1× Power Adapter
1× User Manual
1× Quick Start Guide
