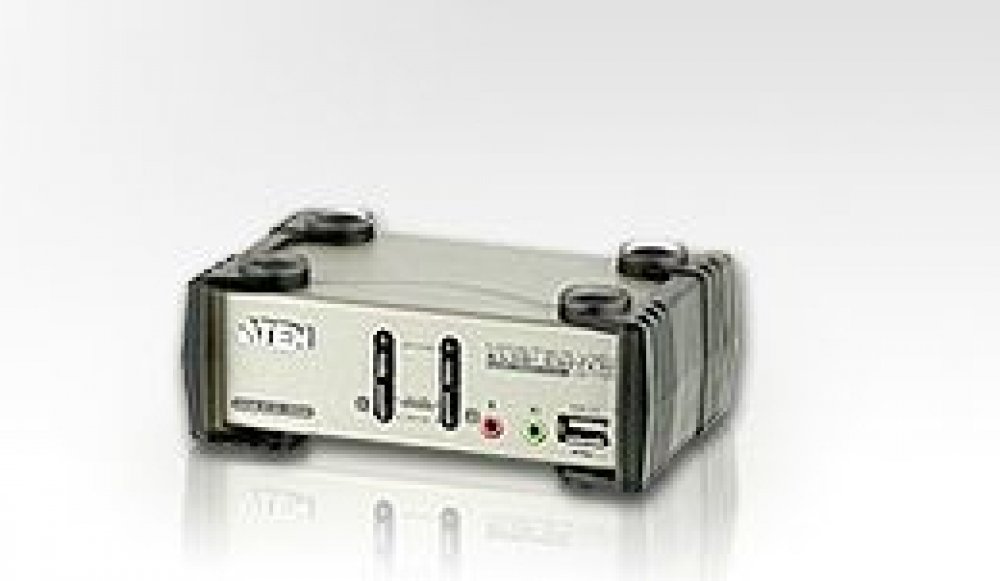

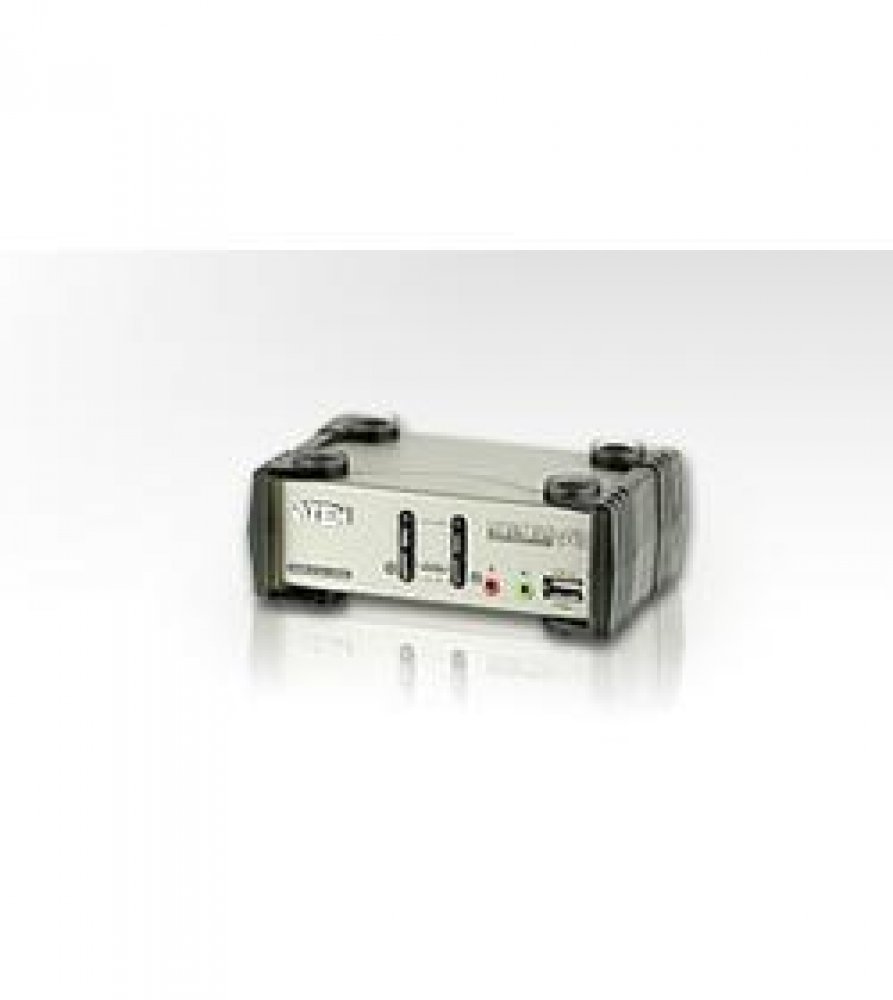

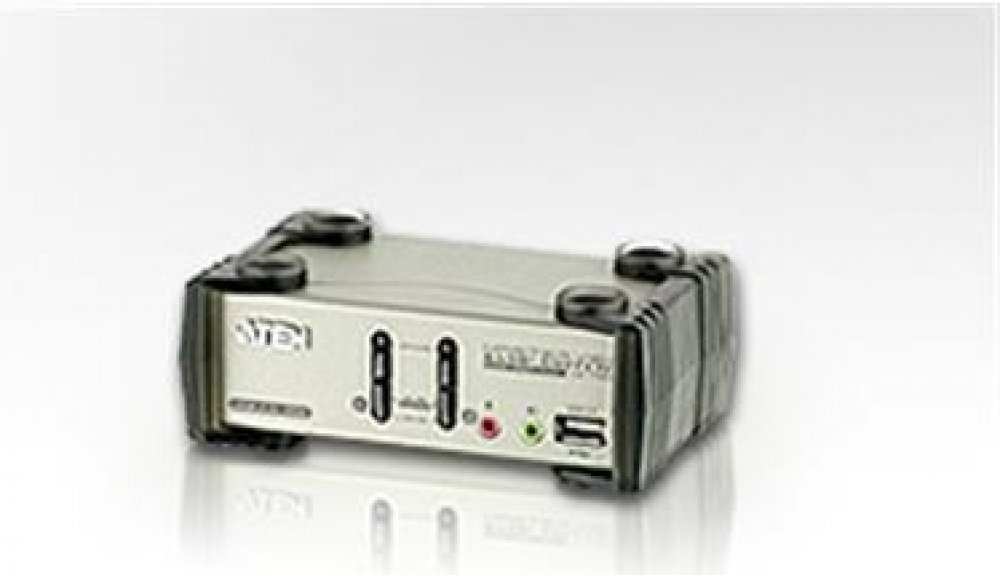

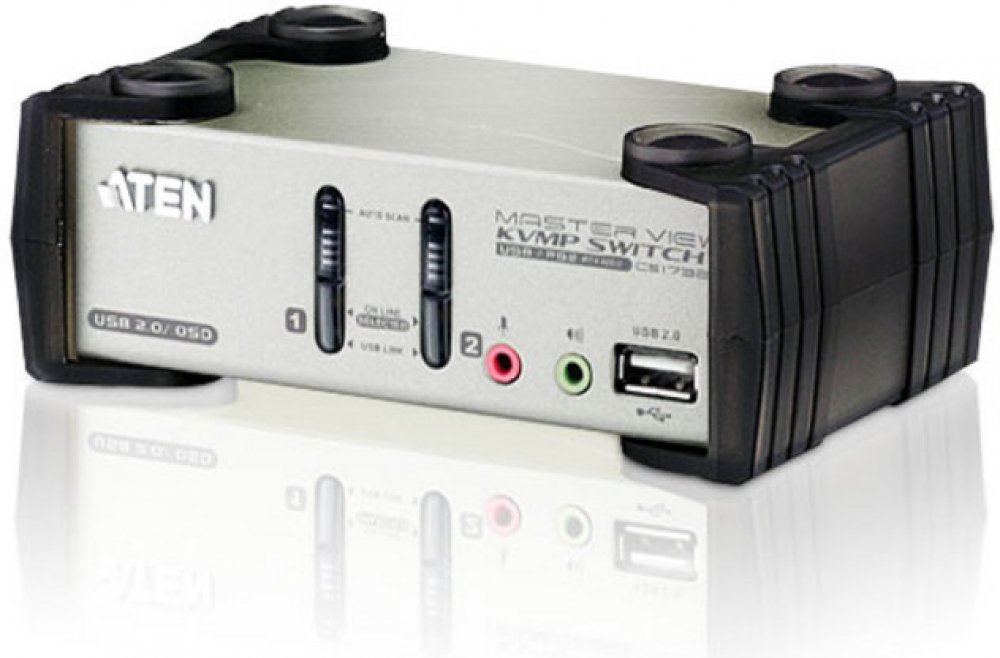

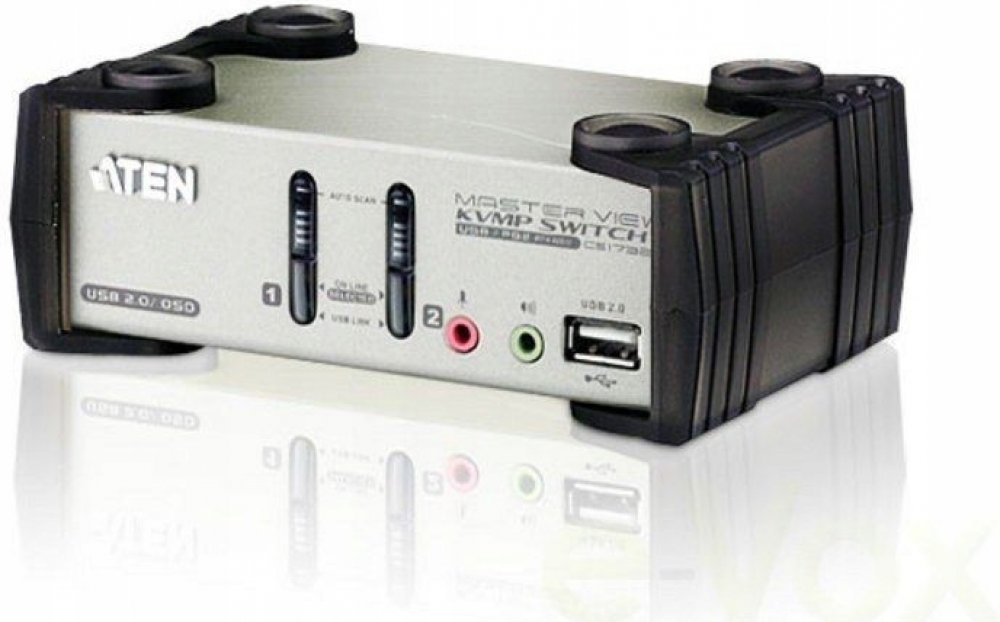

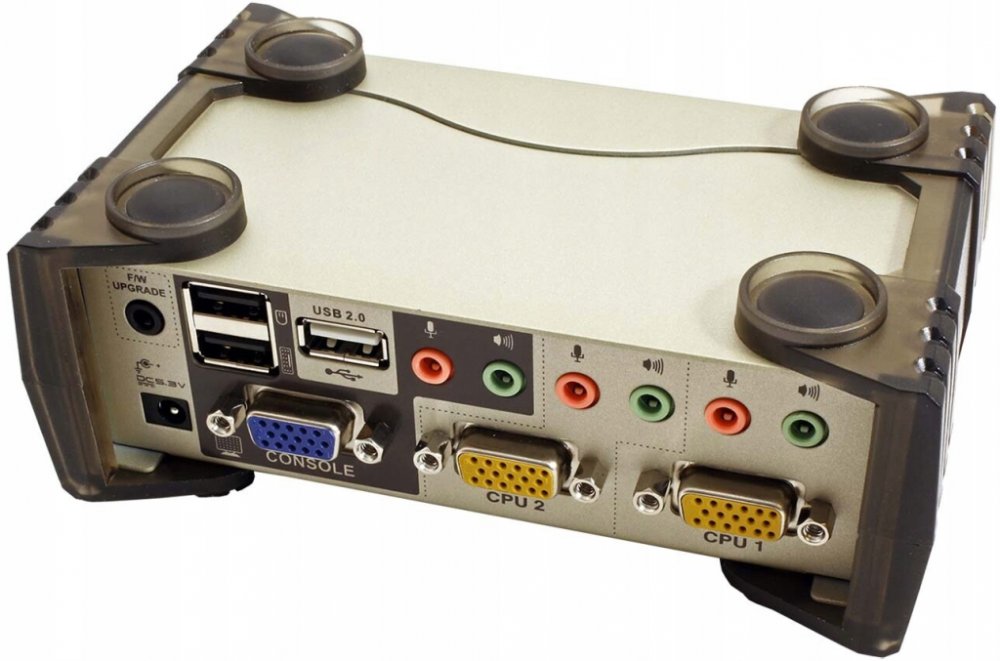

Aten CS-1732BC KVM switch USB Hub 2PC audio+USB-PS/2

CS1732B
ATEN 2-port KVMP USB+PS/2, usb hub, audio, OSD, 1.2m kabely
- 2-port KVM přepínač s USB 2.0 a 2.1 surround sound audio podporou
- 1 konzole ovládá dva počítače a další 2 USB zařízení
- vestavěný 2-port USB 2.0 hub
- USB 2.0 kompatibilní
- Dual interface - podpora počítačů s PS/2 nebo USB klávesnicí a myší
- 2.1 surround sound system
- přiložená redukce USB-PS/2
- nezávislé přepínanání KVM a audia
- video až 2048 x 1536; DDC2B
- podpora širokouhlých modů obrazu
- výběr počítače tlačítkem, OSD, nebo hotkey
- multiplatformní podpora Windows 2000/XP/Vista/7/8, Linux, Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation – no software required
- Firmware upgradeable
*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers
V balení:
1x 2-Port USB 2.0 KVMP™ Switch
2x USB KVM kabelový set pro připojeni k PC
1x USB-to-PS/2 redukce
2x OSD/Hotkey Stickers
1x Firmware Upgrade kabel
1x Napájecí zdroj
1x Manual
1x Příručka pro rychlý start
Podpora Windows 7.
[ENG]
2-Port USB 2.0 KVMP™ Switch with OSD
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, and OSD.
Features
2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
One console controls two computers and two additional USB devices
2-port USB 2.0 hub built in
USB 2.0 compliant
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
Console audio ports on front panel for easy access – ideal for IP phone users
Supports both USB and PS/2 keyboards and mice – configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
Independent switching of KVM, USB, and audio focus
Superior video quality; 2048 x 1536; DDC2B
Supports widescreen resolutions
Computer selection via front panel pushbuttons, OSD (On Screen Display), and hotkeys
Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
LED Display for easy status monitoring
Easy installation – no software required
Firmware upgradeable
*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers

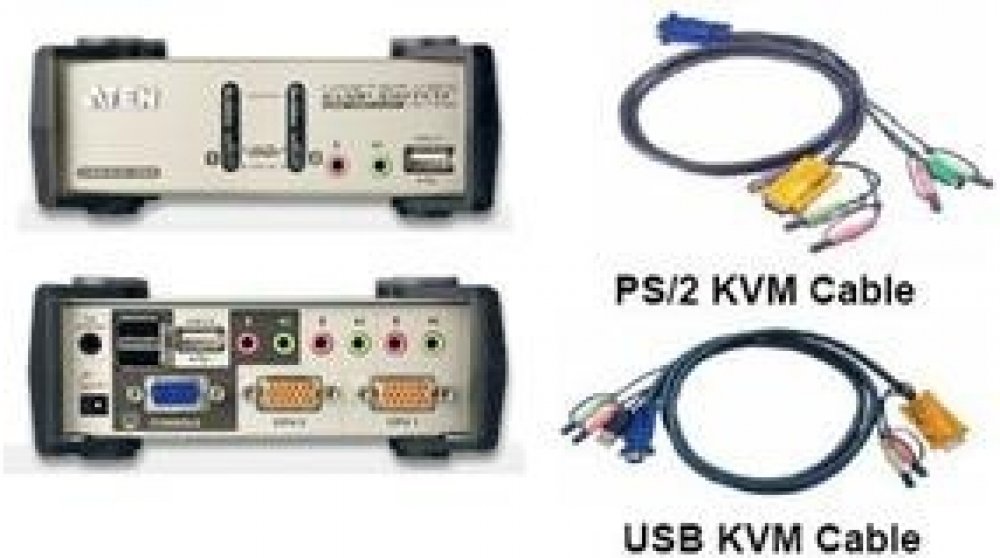

Package Content
1x 2-Port USB 2.0 KVMP™ Switch
2x Custom USB KVM Cable Sets
1x USB-to-PS/2 Converter
2x OSD/Hotkey Stickers
1x Firmware Upgrade Cable
1x Power Adapter
1x User Manual
1x Quick Start Guide
