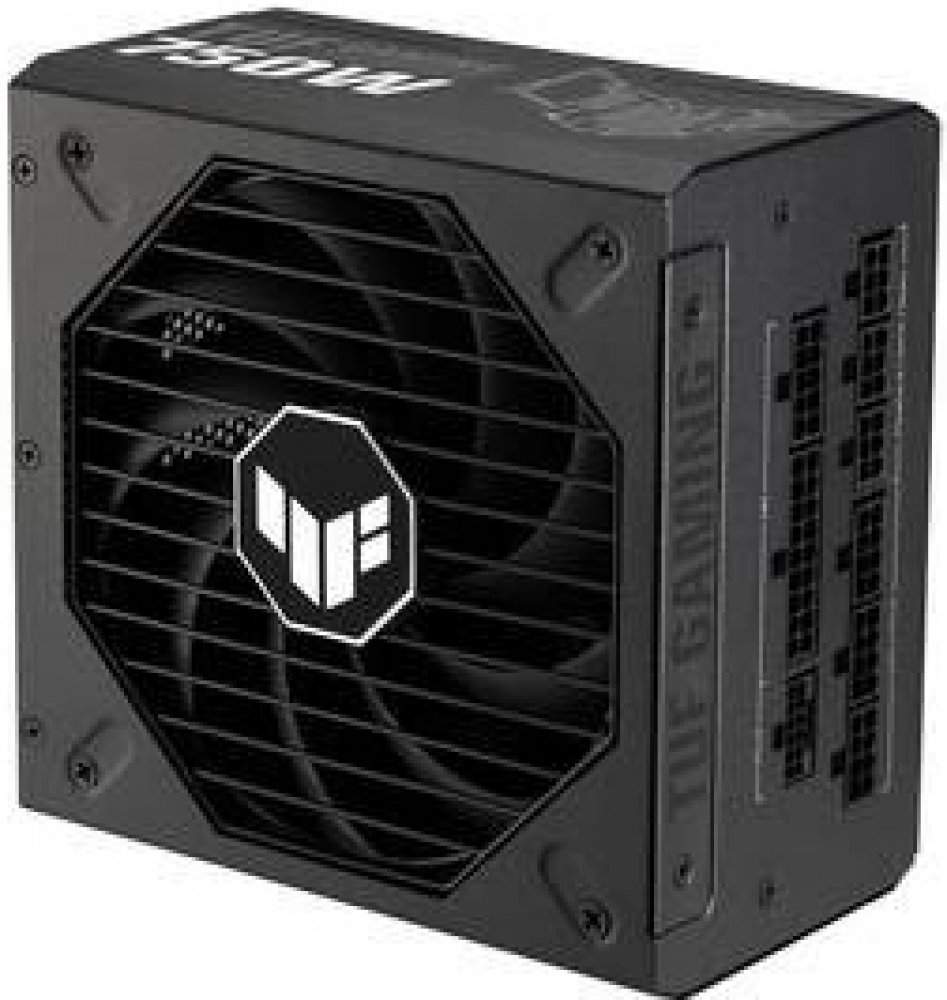

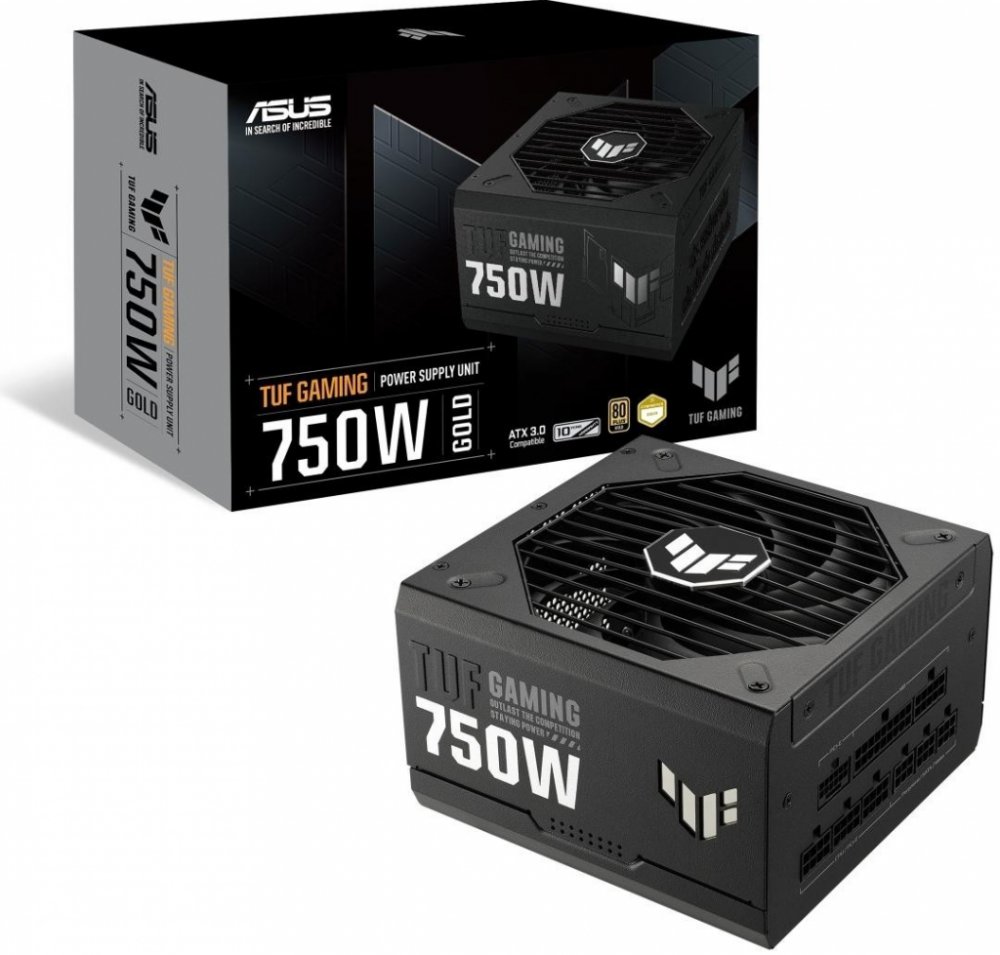

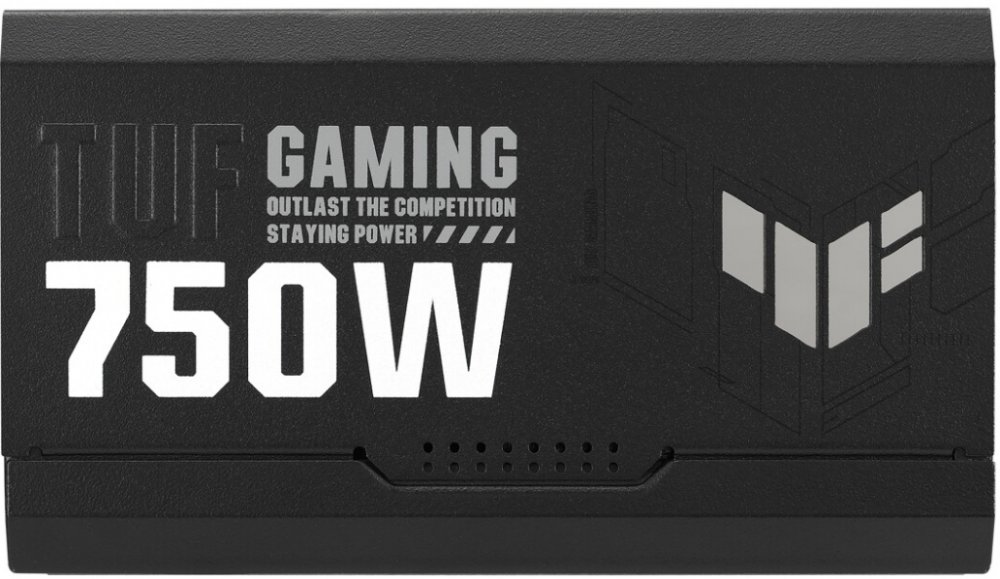

Asus TUF-GAMING-750G 750W 90YE00S3-B0NA00

TUF Gaming 750W Gold
The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective PCB coating protects against moisture, dust, and extreme temperatures.
An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
Fully modular etched cables keep your rig neat and tidy.
10-year warranty included.
Model
TUF Gaming 750W Gold
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A25A62A 0.8A 3A
Combined Load
130W 130W 744W 9.6W 15W
Total Output
750W
Connectors
MB 24/20-pin x 1CPU 4+4-pin x 2PCI-E 16-pin x 1PCI-E 8-pin x 3SATA x 5PERIPHERAL x 4
Package Contents
Power Cord x 1Motherboard Power Cable x 1 (610mm)CPU Cable x 2 (650mm)PCI-E Gen 5 16-pin Cable x 1 (675mm)PCI-E 1-to-1 Cable x 1 (675mm)PCI-E 1-to-2 Cable x 1 (675mm)SATA 1-to-2 Cable x 1 (400+120mm)SATA 1-to-3 Cable x 1 (400+120+120mm)Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)TUF Gaming Cable tie x 3User Manual x 1
Weight
2.38kg (single PSU)
0dB Fan Button
No
